Name: GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack
Brand: Joyoung International Trading Co.,Ltd
SKU: IS220PRTDH1A
Price: 3500 USD
Availability: InStock

Thuis Producten PLC van GE Fanuc

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack

Productdetails:

Plaats van herkomst:	VS
Merknaam:	GE
Certificering:	CO
Modelnummer:	IS220PRTDH1A

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 stc
Prijs:	$3500
Verpakking Details:	6.4" x 6.4" x 4.8" (16 cm x 16 cm x 12 cm)
Levertijd:	5-8 werkdagen
Betalingscondities:	T/t
Levering vermogen:	10 -stcs

Contact

Gedetailleerde productomschrijving

Merknaam:	GE	Model:	IS220PRTDH1A
Voorwaarde:	Nieuw	Bruto gewicht/verzendgewicht:	2.2 lbs / 35,2 oz / 1 kg
Verpakkingsmaat:	6.4" x 6.4" x 4.8" (16 cm x 16 cm x 12 cm)	Land van oorsprong/land van oorsprong:	Verenigde Staten van Amerika
Doorlooptijd:	Op voorraad	Verzendhaven:	Xiamen
Betaling:	T/t	Verkoopprijs:	NAVRAAG
Kleur:	Afhankelijk van het materiaal	Garantie:	12 maanden
Doorlooptijd:	5-8 werkdagen	Koerierspartners:	DHL, UPS, TNT, FedEx en EMS

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack

Product Details:

Brand Name	GE
Model	IS220PRTDH1A
Catalog	Mark VI
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$3500
Warranty	12 months
Lead time	3-5 work days

Additional Information:

N/M

Description:

The GE IS220PRTDH1A is a Resistance Temperature Device Input Module manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. An RTD input terminal board and one or more I/O Ethernet networks are connected electrically by the Resistance Temperature Device (RTD) Input (PRTD) pack.

An acquisition board dedicated to the thermocouple input function is included in the pack, along with a processor board that is shared by all Mark VIe distributed I/O packs. Up to eight RTD inputs can be supported by the I/O pack, while the TRTD terminal boards can support up to sixteen RTD inputs. A DC-37 pin connector that links directly to the terminal board connector for the pack, as well as a three-pin power input, are used for input. There are two RJ45 Ethernet connectors for the output. Indicator LEDs are used to display visual diagnostics.

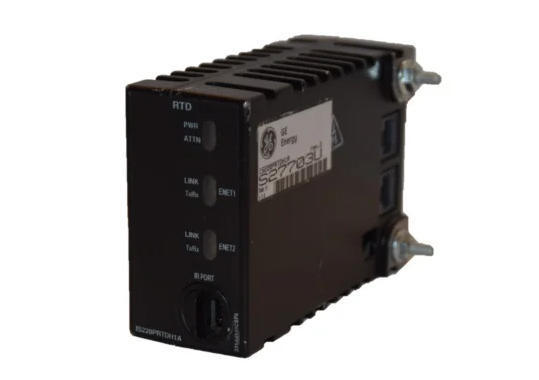

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack 0
